Sprockets and Chains

See Drop Down Menu For Options
Contact us if what you need is not listed

All Rear Sprockets Made in the USA from Light Weight Aluminum
State Size and Tooth Count When Ordering

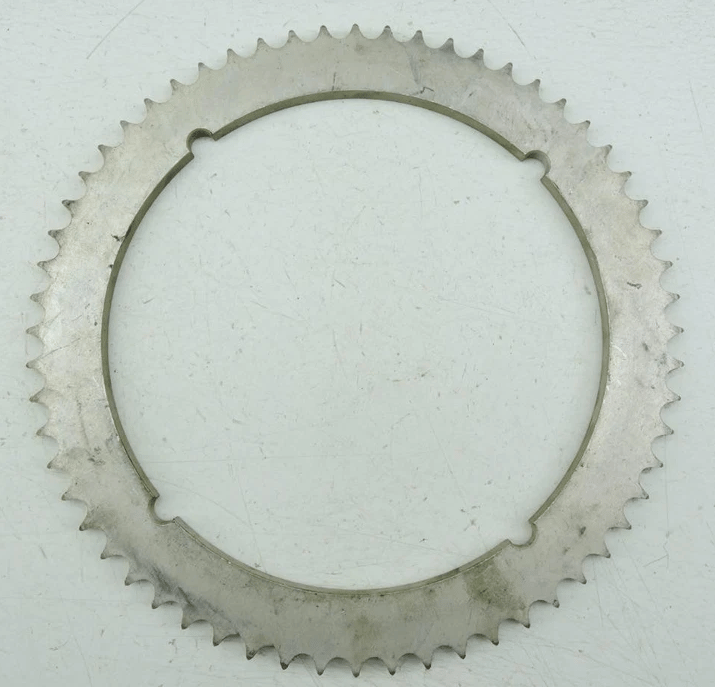

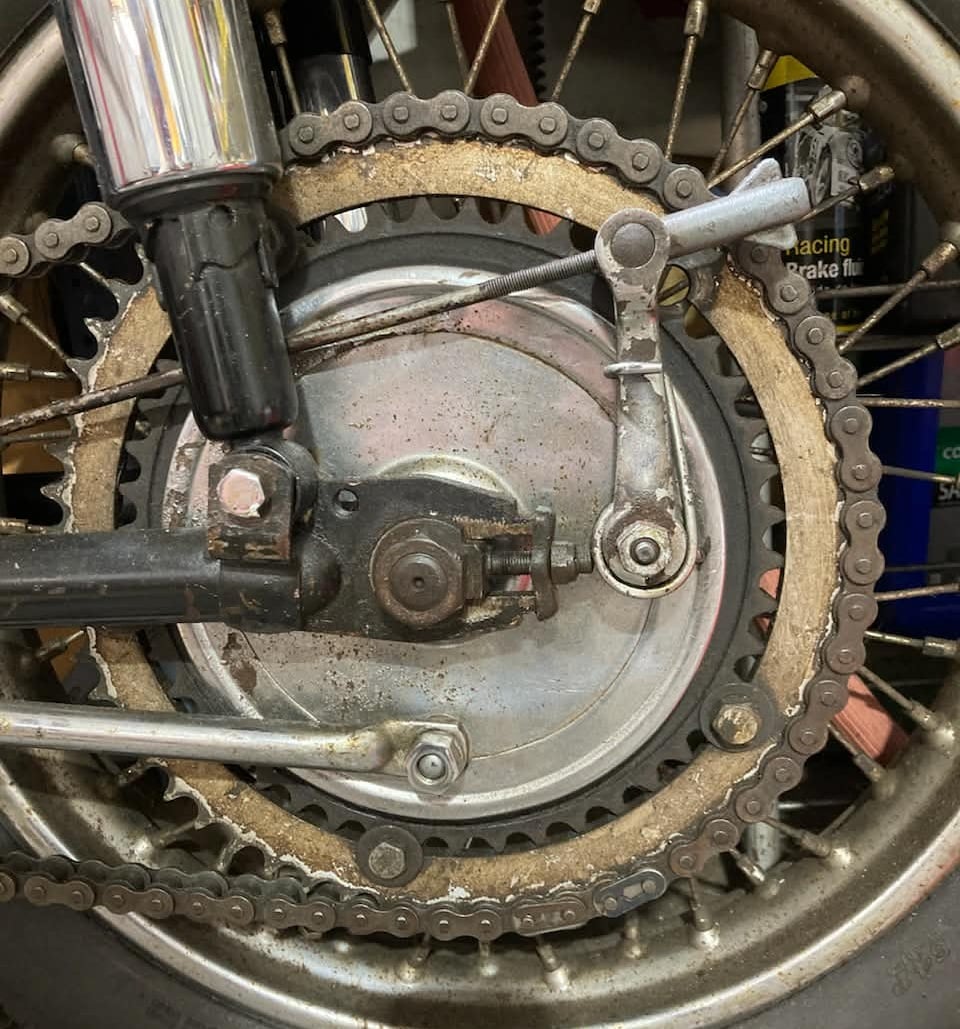

Triumph Overlay Sprockets: 530 56-60 teeth
Specify tooth count on original 43 or 46T

--------------------------------------------------------------------

BSA Overlay Sprockets: 530 56-60 teeth

--------------------------------------------------------------------

Triumph Stock Rear Sprockets: 530 46-52 teeth
Spool Hub - Pre-Unit/ Unit 500/ 650 1954-70 (8 bolt 1/4 in)
Conical Hub -650 1971-74 (5 bolt 1/4 in)
Disc Hub - 750 1976-on (4 bolt 3/8 in)

-------------------------------------------------------------------

BSA Twins Stock Rear Sprockets: 530 46-52 teeth
Crinkle Hub (10 bolt 1/4 in)
Conical Hub -650 71-72 (5 bolt 1/4 in)

-------------------------------------------------------------------

BSA Unit Singles Stock Rear Sprockets: 520 46-52 teeth
Crinkle Hub (10 bolt 1/4 in)
Conical Hub -650 71-72 (5 bolt 1/4 in)

-------------------------------------------------------------------

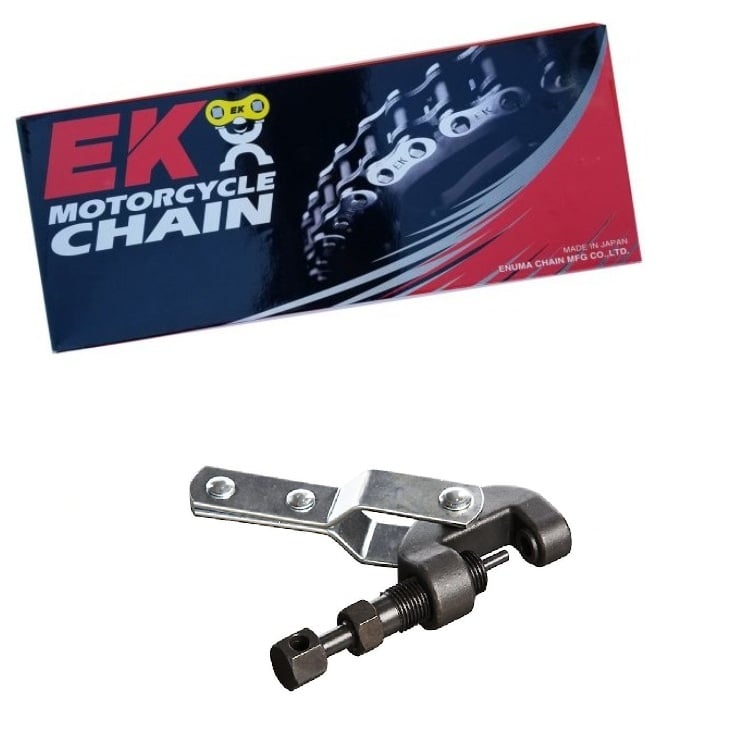

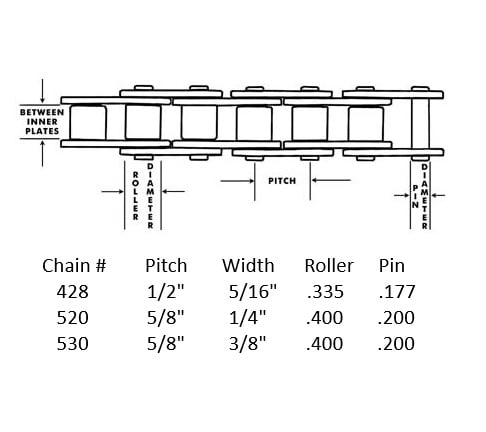

Rear Drive Chain 530:
Non O-ring Natural Finish

Rear Drive Chain 520:
Non O-ring Natural Finish

Chain Breaker Tool

-----------------------------------------------------------------

See Drop Down Menu For Options
Contact us if what you need is not listed

---------------------------------------------------------------

Factory Primary Ratio/ Final Ratio:

Triumph Pre-Unit 1.95 (22:43), 2.38 (18:43)

Triumph 500 Unit 2.23 (26:58), 2.26 (19:43)

Triumph 650 Unit 2 (29:58), 2.42 (19:46)

Triumph 750 Unit 2 (29:58), 2.35 (20:47)
